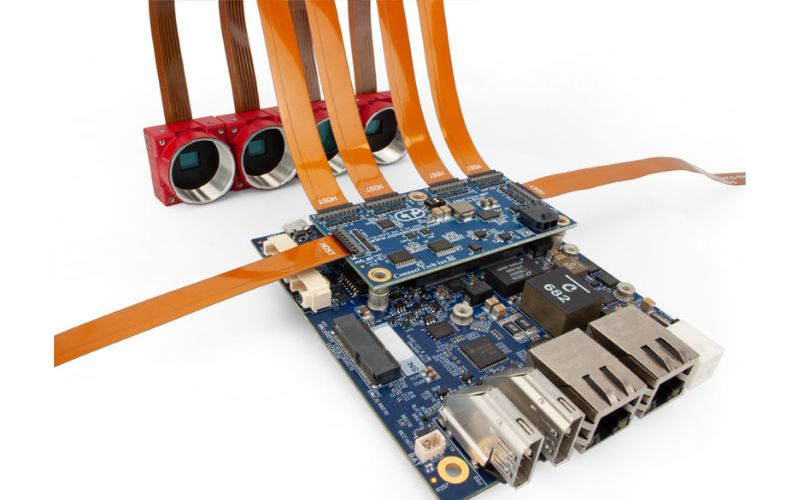

There is no universal external connector standard for MIPI CSI-2! That means the critical step in using an Allied Vision Alvium camera with your Connect Tech NVIDIA Jetson carrier board – like the Rogue-T5, Gauntlet, Rogue, Forge, Boson, or Hadron – is bridging the gap created by the non-standardized nature of MIPI CSI-2 external connectors. The purpose of this blog is to help you order the cables and accessories you need to hook them up.
If you are using an Allied Vision Alvium CSI-2 camera with a Jetson AGX Orin with the Rogue or Forge carrier boards, or a Jetson AGX Thor with the Rogue-T5 or Gauntlet carrier boards, this is exactly what you need to order, in addition to your main hardware:
Required Components
- Connect Tech/Allied Vision MIPI Adapter Board (JCB005): This specialized board is essential because it converts the camera’s output to the appropriate high-density connector used on the carrier. The board supports connectors for up to six Allied Vision MIPI CSI-2 cameras.
- Flex Cable: You will need a flex cable to connect your Alvium Camera to the MIPI Adapter Board
Optional Accessories
These items are available to provide enhanced stability and deployment flexibility:
- Tripod Mount
- Retaining Plate
We’ve made it simple to find these items. This handy table includes links into our ecommerce site:
Parts List for Connecting Jetson AGX Carrier and Alvium MIPI CSI-2 Camera
| Cables & Accessories | Description | Manufacturer P/N | WDL P/N |
|---|---|---|---|
| MIPI Camera Expansion Board | Connect Tech/Allied Vision MIPI Camera Expansion Board for up to 6 Alvium MIPI CSI-2 Sensors | JCB005 | 1CJCB005 |
| Cable CSI-2 70mm | 70mm flex cable for CSI-2 | 18947 | 1AVC270M |
| Cable CSI-2 120mm | 120mm flex cable for CSI-2 | 12316 | 1ALC2120 |
| Cable CSI-2 220mm | 220mm flex cable for CSI-2 | 12317 | 1ALC2220 |
| Cable CSI-2 420mm | 420mm flex cable for CSI-2 | 12318 | 1ALC2420 |
| Tripod Adapter | Tripod mounting plate for Alvium cameras | 12310-02 | 1AVAMP10 |
| Retaining Plate Set for FH55 Connector | Retaining Plate Set (2 x retaining plate) incl. 4 x M3-screws and 4 x washer D3.2 for Alvium 1500C/1800C | 16298 | 1AVRPS55 |

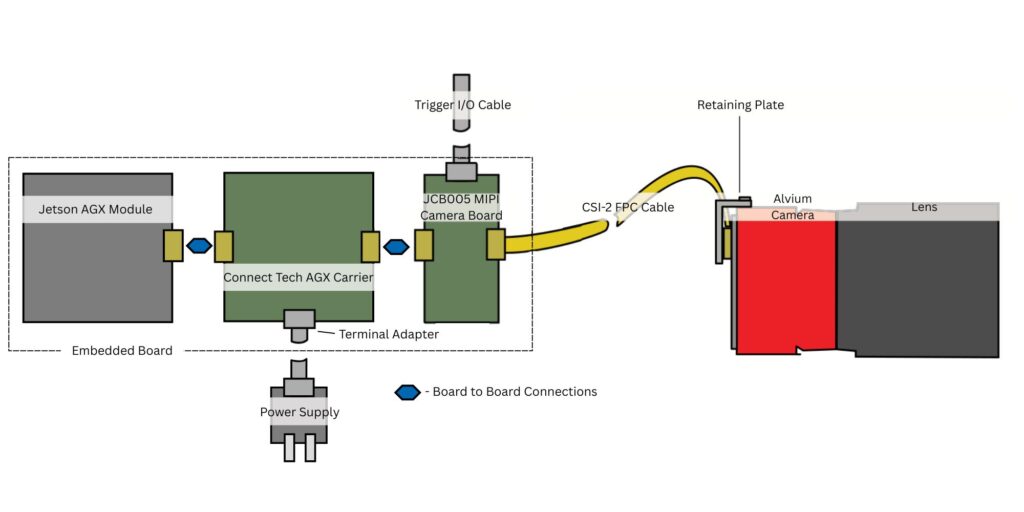

This image makes it easy to visualize the connection:
Connecting the Hadron or Boson Carrier for Jetson Orin NX to an Alvium CSI-2 Camera
Connecting a carrier for Orin NX and an Alvium camera requires a different setup. You will not need the Connect Tech/Allied Vision MIPI Adapter Board (JCB005). The Hadron-DM and Boson-22 are equipped with 22-pin MIPI CSI-2 connectors. However, the Alvium camera is equipped with a Hirose FH55 FPC connector. (Remember: there is no universal external connector standard for MIPI CSI-2 – you have to bridge the gap😊!)
If you are using an Allied Vision Alvium CSI-2 camera with a Jetson Orin NX with the Hadron or Boson carrier boards, this is exactly what you need to order, in addition to your main hardware:
Required Components
Allied Vision Adapter Board for NVIDIA Jetson Orin Nano Developer Kit: The Connect Tech carriers for NVIDIA Jetson feature the same 22-pin MIPI CSI-2 connector found on the NVIDIA Jetson Orin Nano Developer board. The adapter board adapts electrical lines, polarity, and voltage levels between the Alvium CSI-2 cameras and the carrier.
Flex Cable: You will need a flex cable to connect your Alvium Camera to the Adapter Board
Optional Accessories
These items are available to provide enhanced stability and deployment flexibility:
- Tripod Mount
- Retaining Plate
Parts List for Connecting Jetson NX Carrier and Alvium MIPI CSI-2 Camera
| Cables & Accessories | Description | Manufacturer P/N | WDL P/N |
|---|---|---|---|
| Adapter Board for NVIDIA Jetson Orin Nano Dev Kit | Allied Vision Adapter Board for NVIDIA Jetson Orin Nano Developer Kit | 19623 | 1AVJONDK |
| Cable CSI-2 70mm | 70mm flex cable for CSI-2 | 18947 | 1AVC270M |
| Cable CSI-2 120mm | 120mm flex cable for CSI-2 | 12316 | 1ALC2120 |
| Cable CSI-2 220mm | 220mm flex cable for CSI-2 | 12317 | 1ALC2220 |
| Cable CSI-2 420mm | 420mm flex cable for CSI-2 | 12318 | 1ALC2420 |
| Tripod Adapter | Tripod mounting plate for Alvium cameras | 12310-02 | 1AVAMP10 |
| Retaining Plate Set for FH55 Connector | Retaining Plate Set (2 x retaining plate) incl. 4 x M3-screws and 4 x washer D3.2 for Alvium 1500C/1800C | 16298 | 1AVRPS55 |

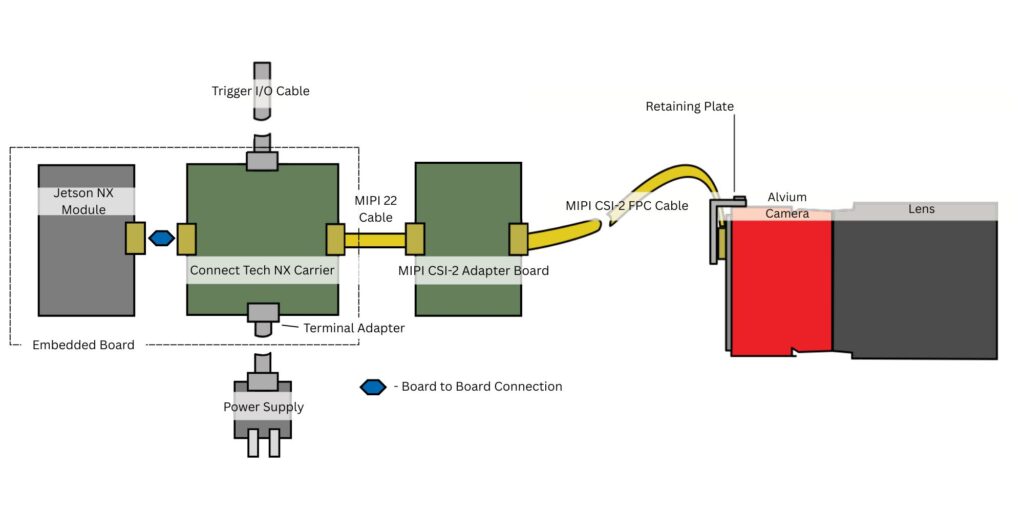

This image makes it easy to visualize the connection:
Connect Tech and Allied Vision have worked together to eliminate the guesswork involved in setting up complex MIPI CSI-2 vision systems. By ordering the specified adapter board, the required flex cable, and any optional mounting accessories, you can be confident that you have everything you need to connect your Alvium camera and move swiftly into development!
We are here to help! Call us at 800-548-2319 or email sales@wdlsystems.com to discuss your requirements. When you work with us, you always talk with a real person. We’re not robots, but we can help you make them.
